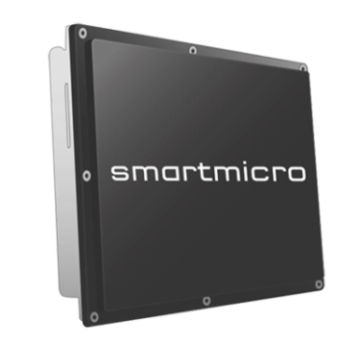

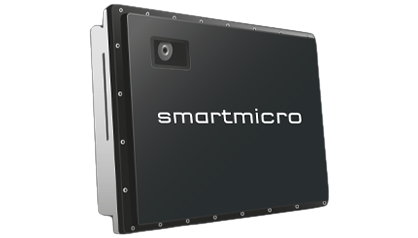

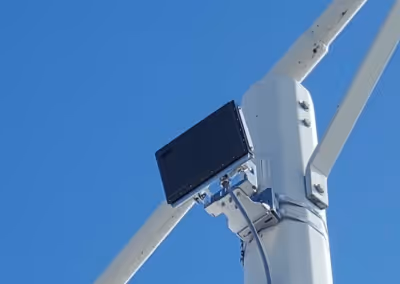

AN ADVANCED FORWARD-FIRING RADAR



smartmicro’s ultra-high-definition traffic sensors feature multi-lane and multi-object tracking radar technology.

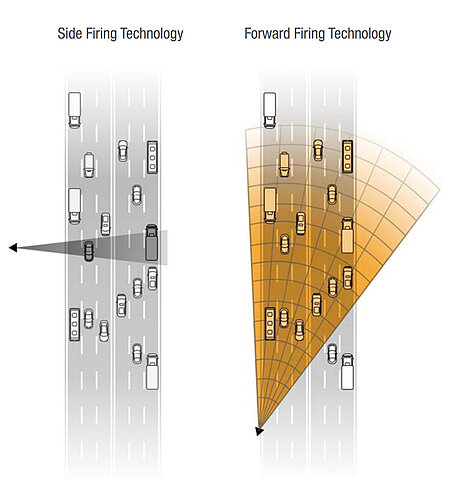

The radar uses a Forward Firing Technology resulting in more accurate detection and installation flexibility using the existing infrastructure compared to Side Firing radars.

The radar can track vehicles up to 300 metres over a 100-degree field of view, so vehicles remain inside the field of view for much longer.

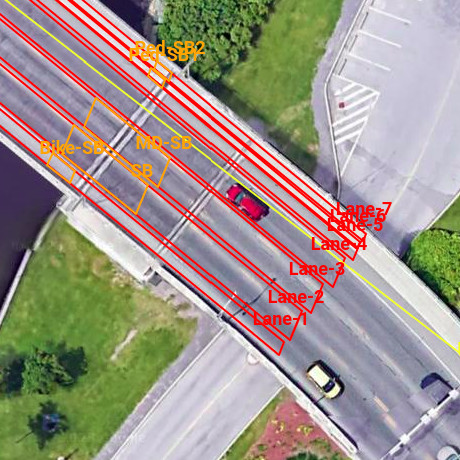

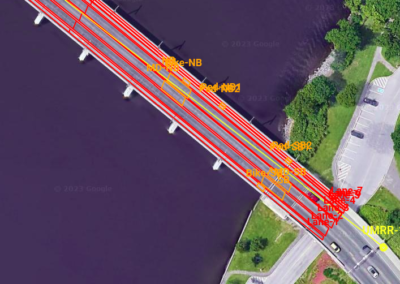

Vehicle position and speed vectors measure with higher accuracy, and a better classification. For example, one sensor can offer up to 32 detection zones.

INTEGRATING SMARTMICRO RADAR TO INODE

Real-Time Vehicle Detection

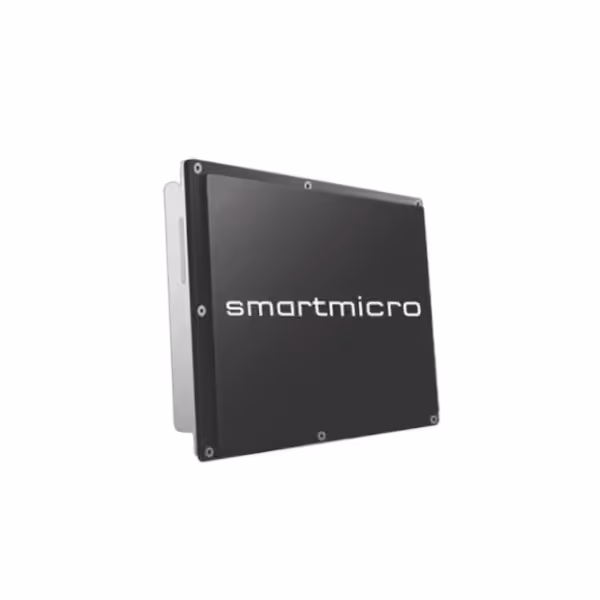

smartmicro Radar detects and classify the objects

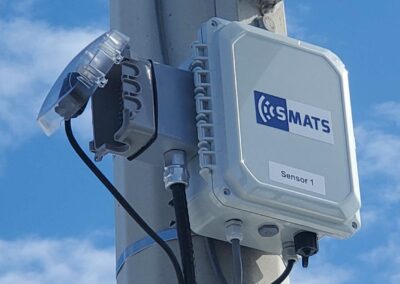

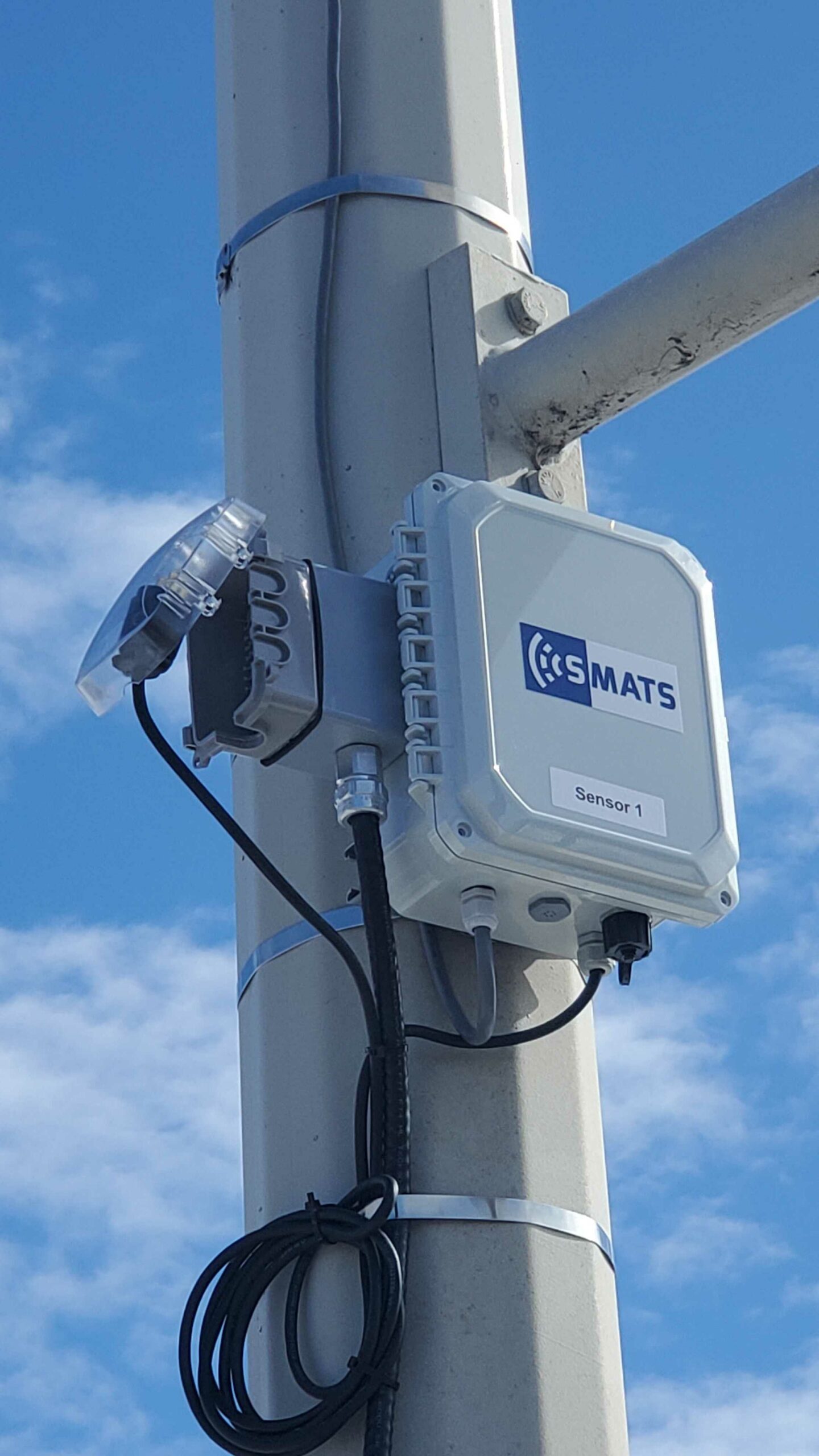

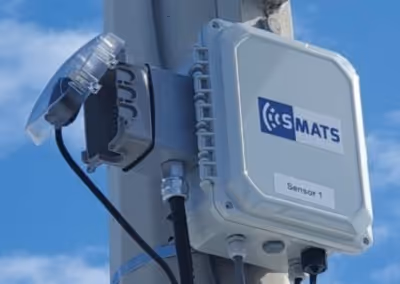

Metal box with plugs and wires attached

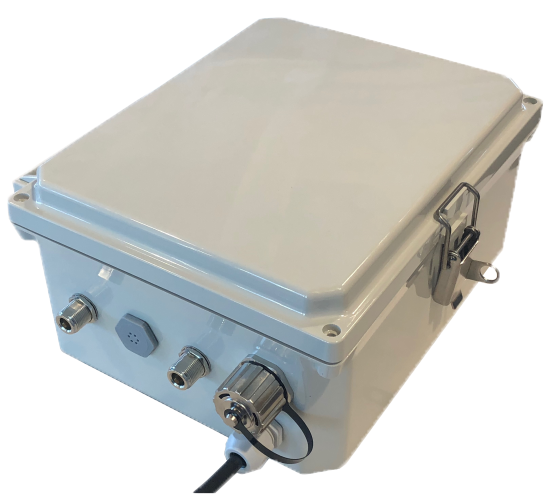

Data Aggregator

TrafficXHub reads and aggregates radar data at edge

iNode

iNode cloud software stores and visualizes aggregated data

RADAR FEATURES

Ultra-High-Definition (4D/UHD)
Separate objects by speed, range, and azimuth angle to measure elevation angles.
Flexible Location

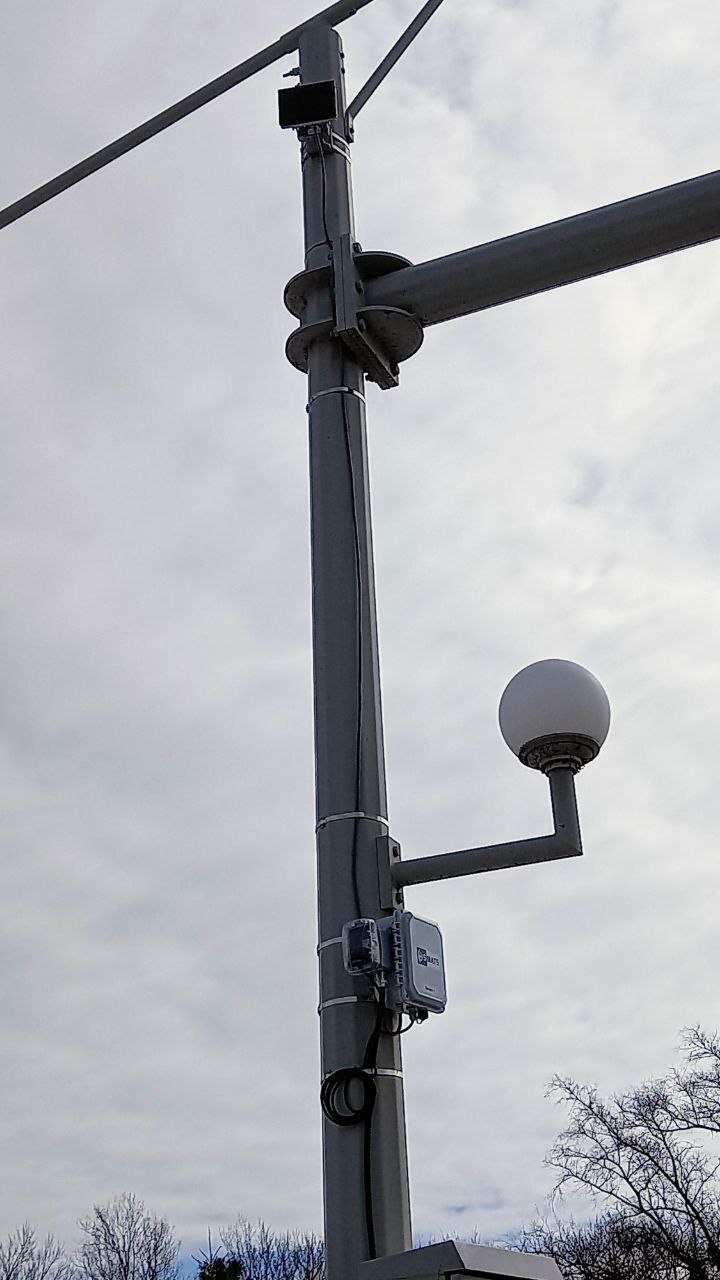

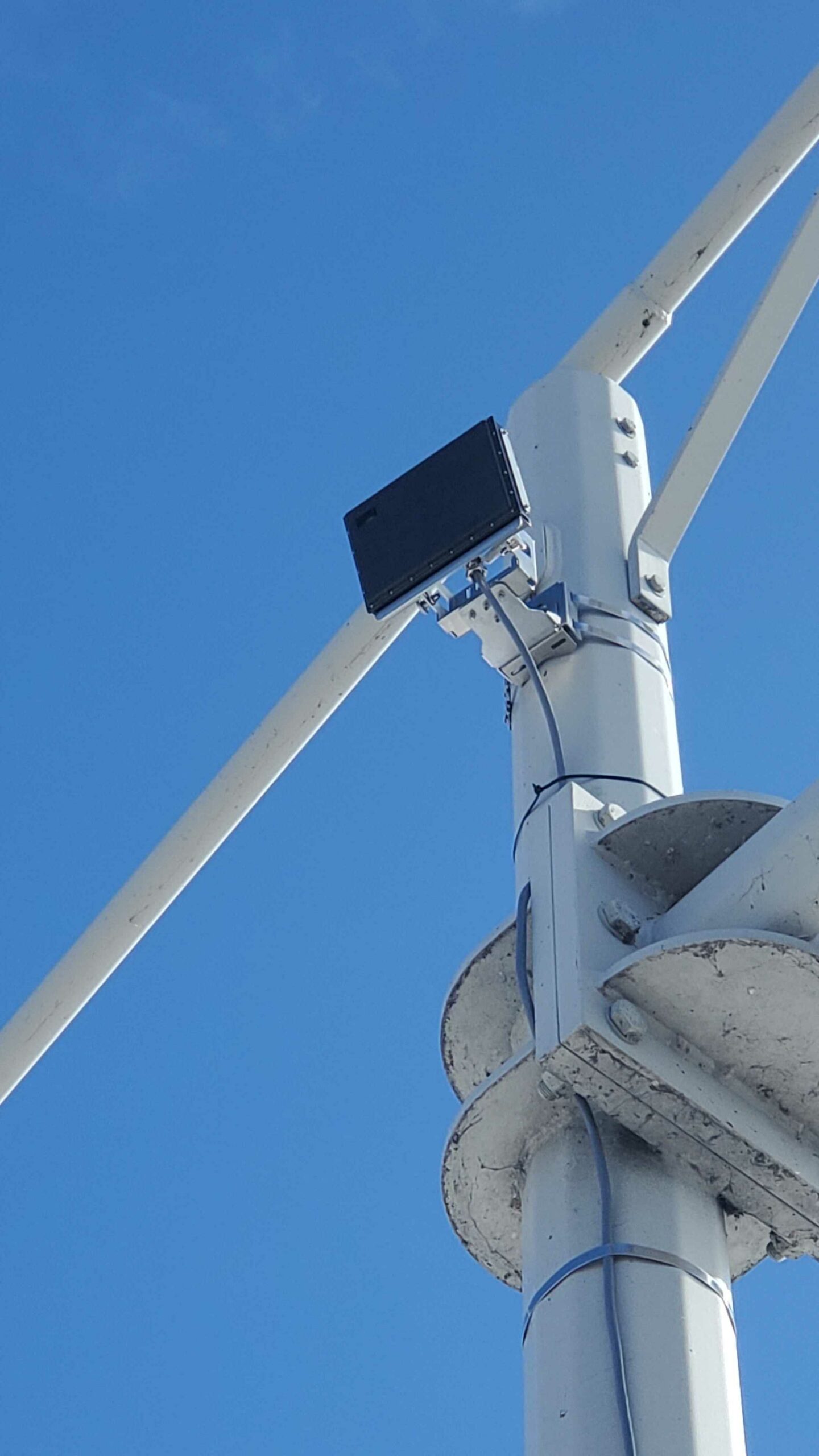

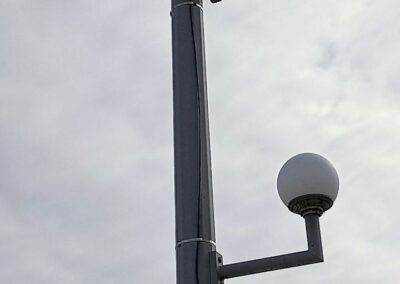

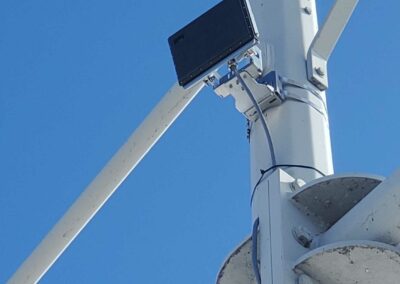

Use the radar on any existing infrastructure, for example, roadside, intersection, or highway medians.
Detect More Vehicles
Detect up to 256 vehicles simultaneously. Designed for high-performance, multi-lane, and multi-object detection.
Maintenance-Free
Built-in self-calibration functions throughout the entire design life makes this sensor maintenance-free.
Extended Detection Range
Detect a range up to 300m (984ft).
Robust Hardware
Unbreakable, rated IP67, and reliably works in environments from -40 to +85°C over an extensive lifetime.
All-Weather Solution
Collect data in all weather conditions without compromise for ambient light or reduced visibility.
Seven Object Classification
Classify pedestrians, bikes, motorcycles, passenger cars, transporters, trucks or buses, and long trucks.

TRAFFICXHUB & INODE FEATURES

Car data graphic
Remote Config

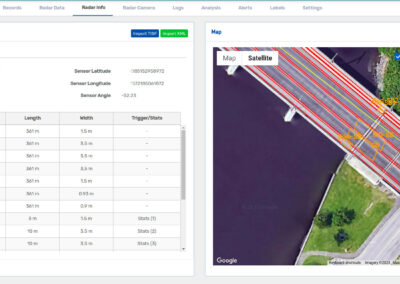

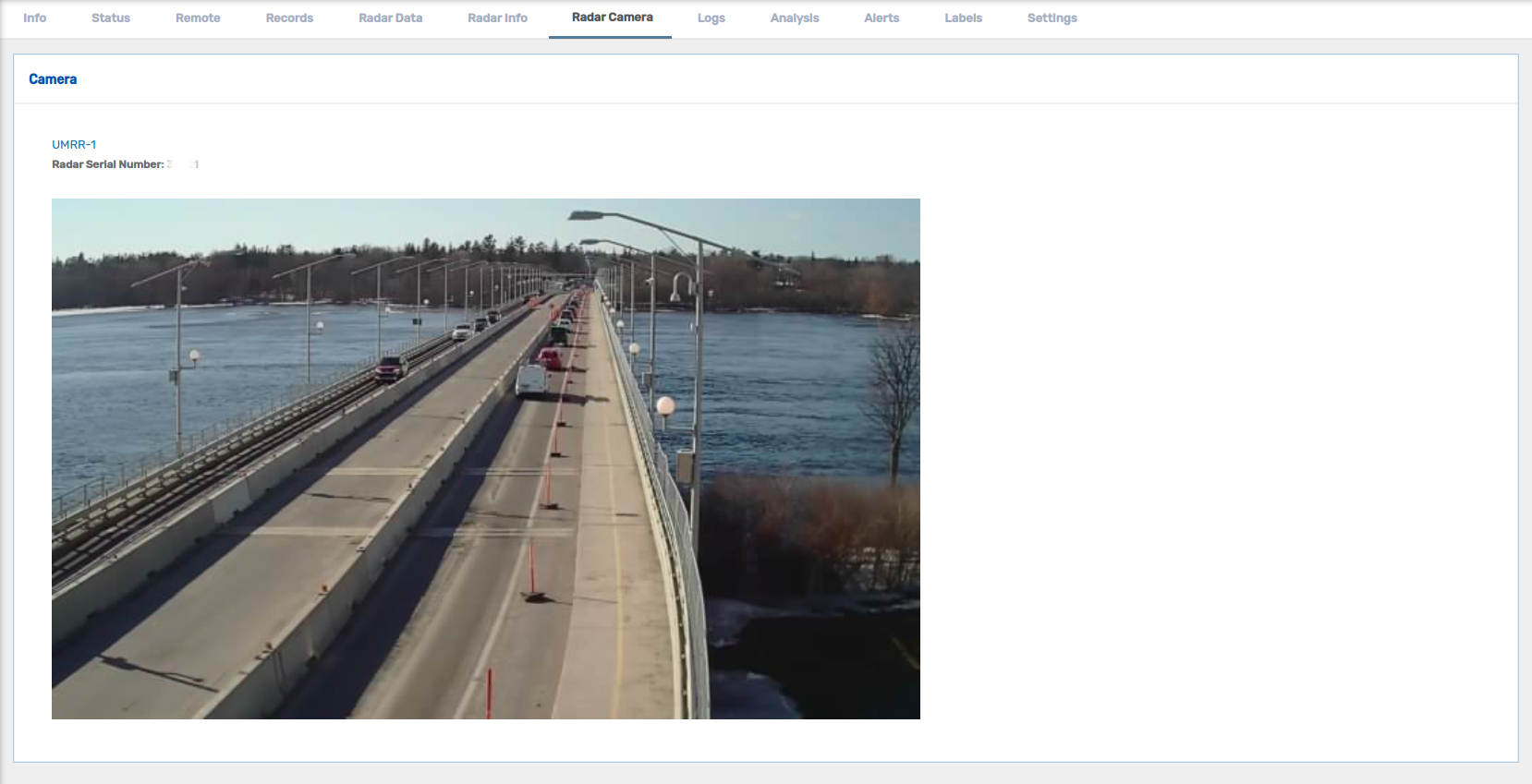

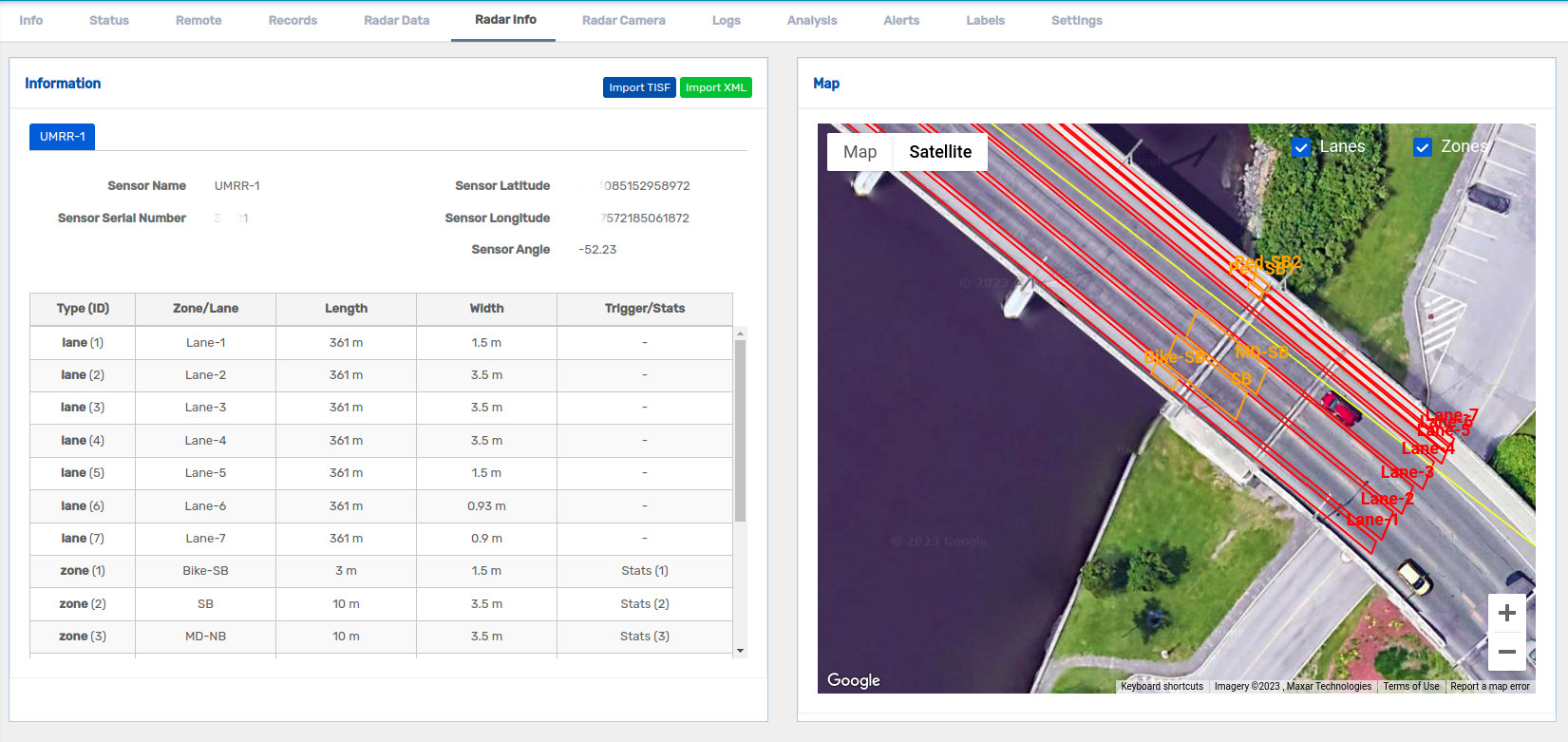

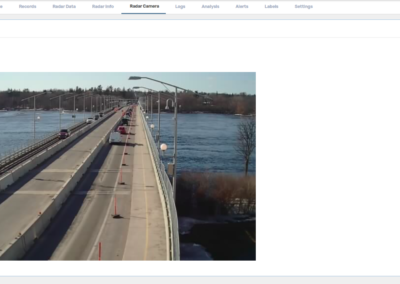

Configure smartmicro Radar remotely with real-time video and on-demand VPN through iNode and TrafficXHub edge unit, eliminating the need for high data usage static IP simcard
Real-Time Data
Sync radar data to iNode™ in real-time for prompt traffic status delivery and decision-making. TrafficXHub stores data locally and syncs back after internet connection is restored
Radar Data Alerts
Stay informed with email notifications on radar traffic data and event triggers. Get real-time updates on changes based on static thresholds or historical traffic patterns, so you never miss a beat

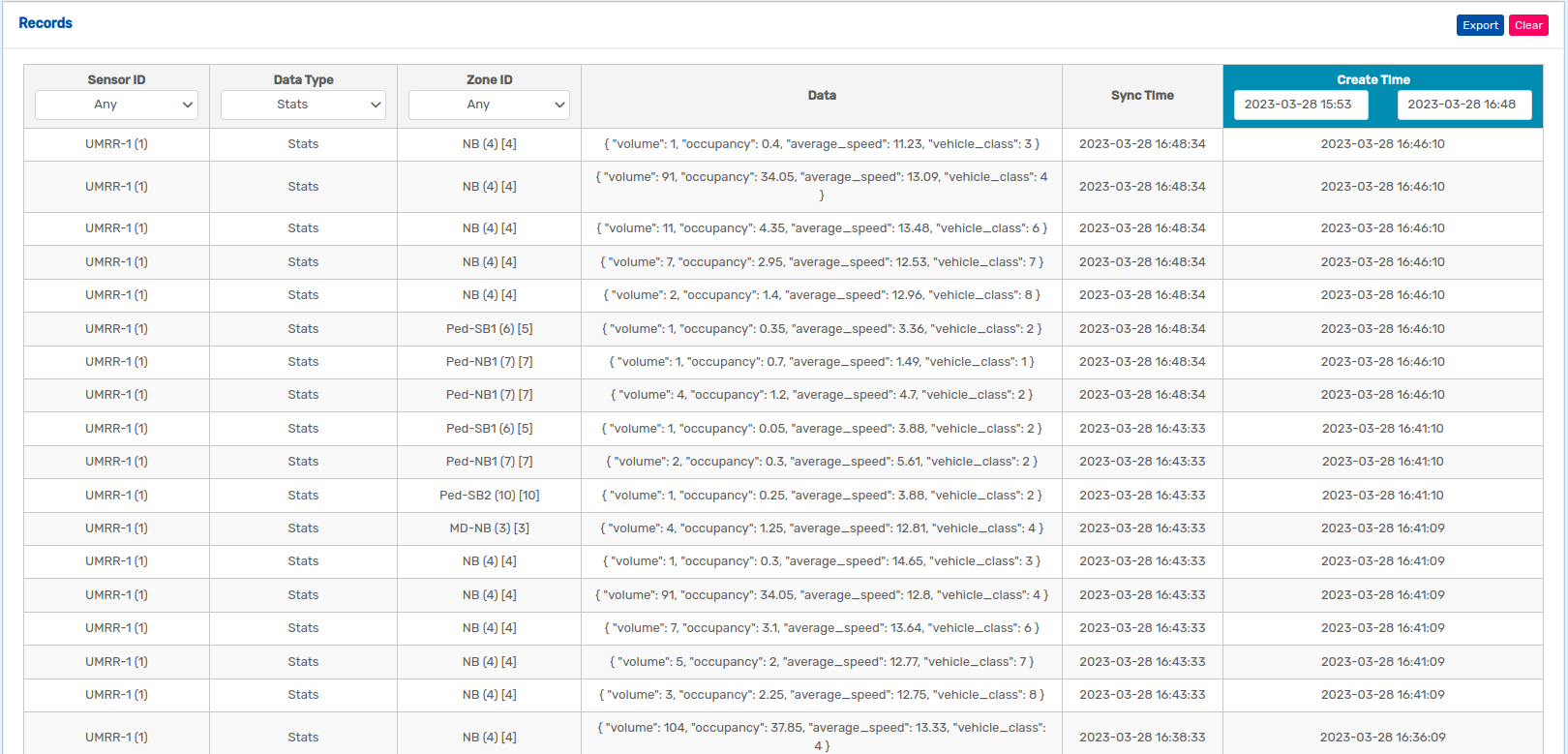

Historical Data

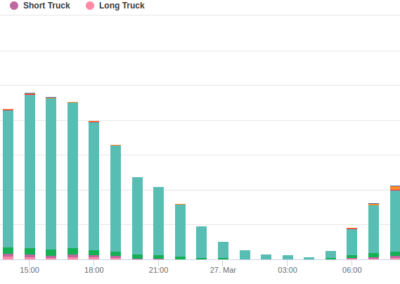

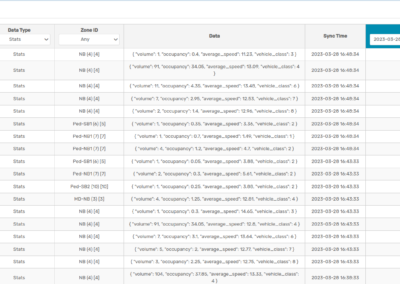

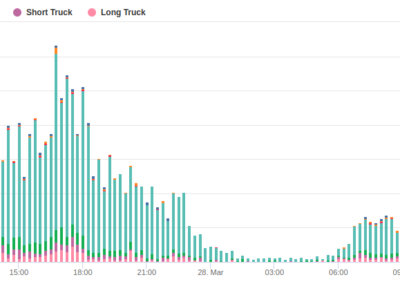

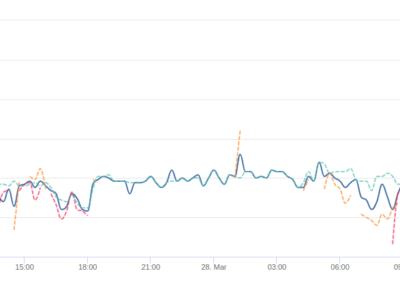

Explore historical data with iNode™ Insight to conduct before-and-after studies, and track traffic trends over weeks or months for valuable insights

USE CASES

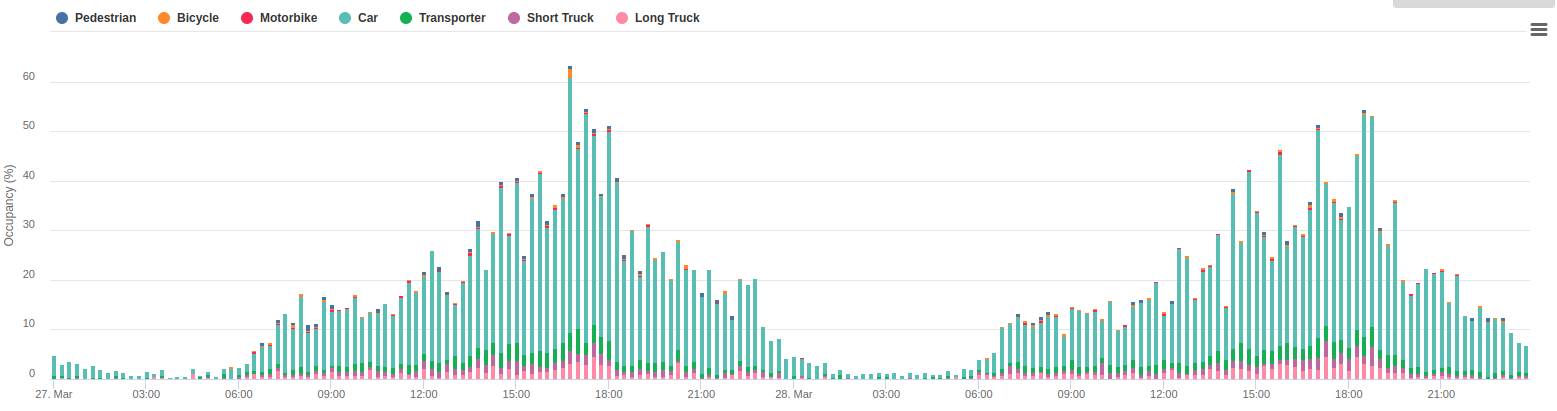

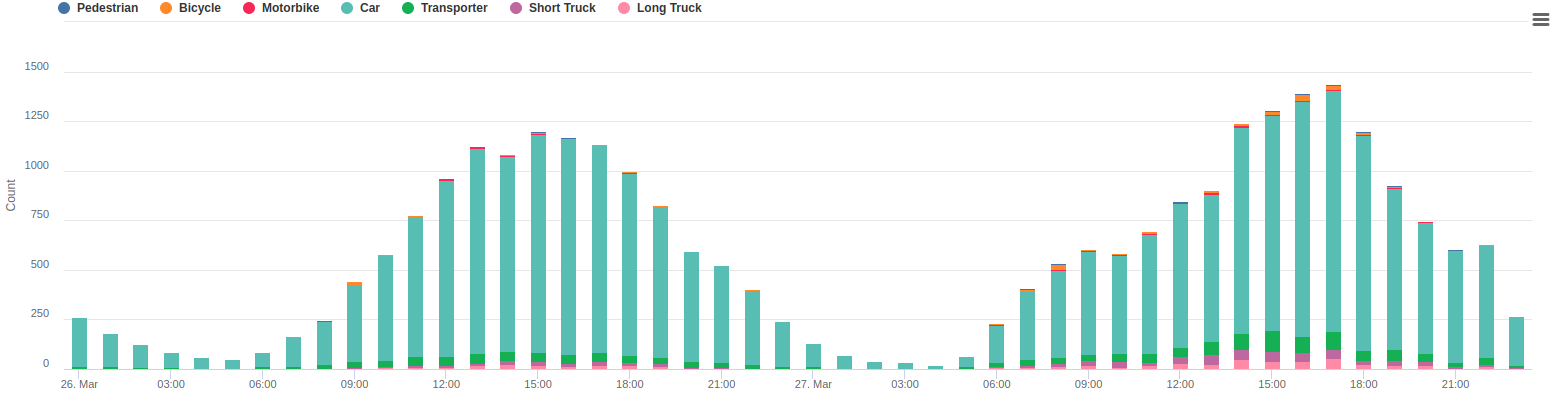

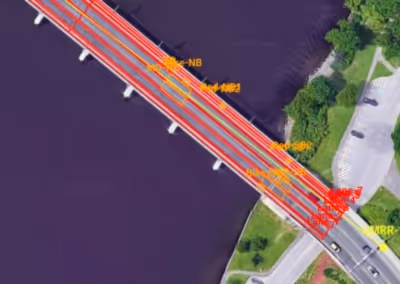

Count, Classification and Occupancy

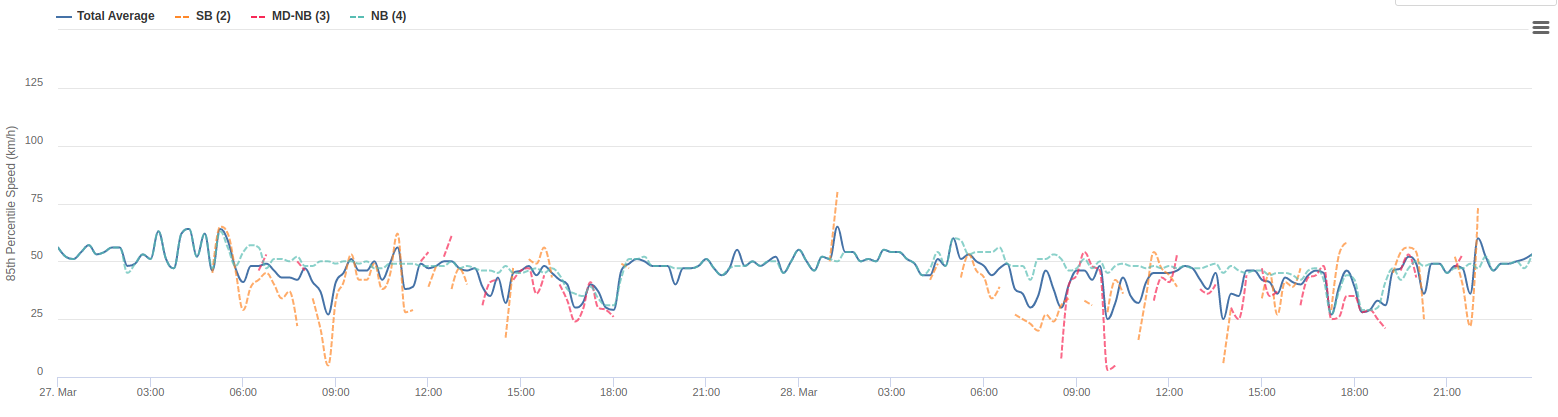

Spot Speed

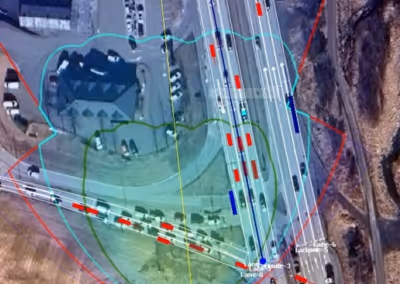

Queue Length & Stopped Vehicle Detection
Wrong Way Detection
